Large Alternating Air Pressure Mattress Pad Waterproof Pressure Relief Ulcer Cushion Pad Bed Sore Mattress with Quiet Pump

Description

Shenzhen Fitconn Technology Co.,ltd was founded in 2012 . It is a comprehensive enterprise dedicated to the research and development, manufacturing, sales and after-sales service of household medical products. The products cover nebulizer (compressor nebulizer, DC Compressor nebulizer and Mesh nebulizer), anti-decubitus air mattress, oximeters, fetal doppler, blood pressure monitors, etc. The business covers more than 150 countries around the world, with an average annual service of more than 2,000,000 family. Fitconn adheres to the concept of create health by heart, and is committed to improving the diversification of atomization methods, let’s households medical products and modern medical technology can benefit thousands of families around the world, with respect, tolerance, integrity, efficiency, innovation and persistence as core values, Integrate superior resources, take innovation as the source of development, and take science and technology as the foundation of success, and strive to provide each consumer with more professional, advanced and safer medical products. Fitconn has the class II medical device production qualification and over 50 patents , the company has passed the 13485 quality system certification, and some products have passed the EU CE and FDA certification

Fitconn FU-AM002: Twenty-Two Air Tubes and the Case Against Bubble Mattresses

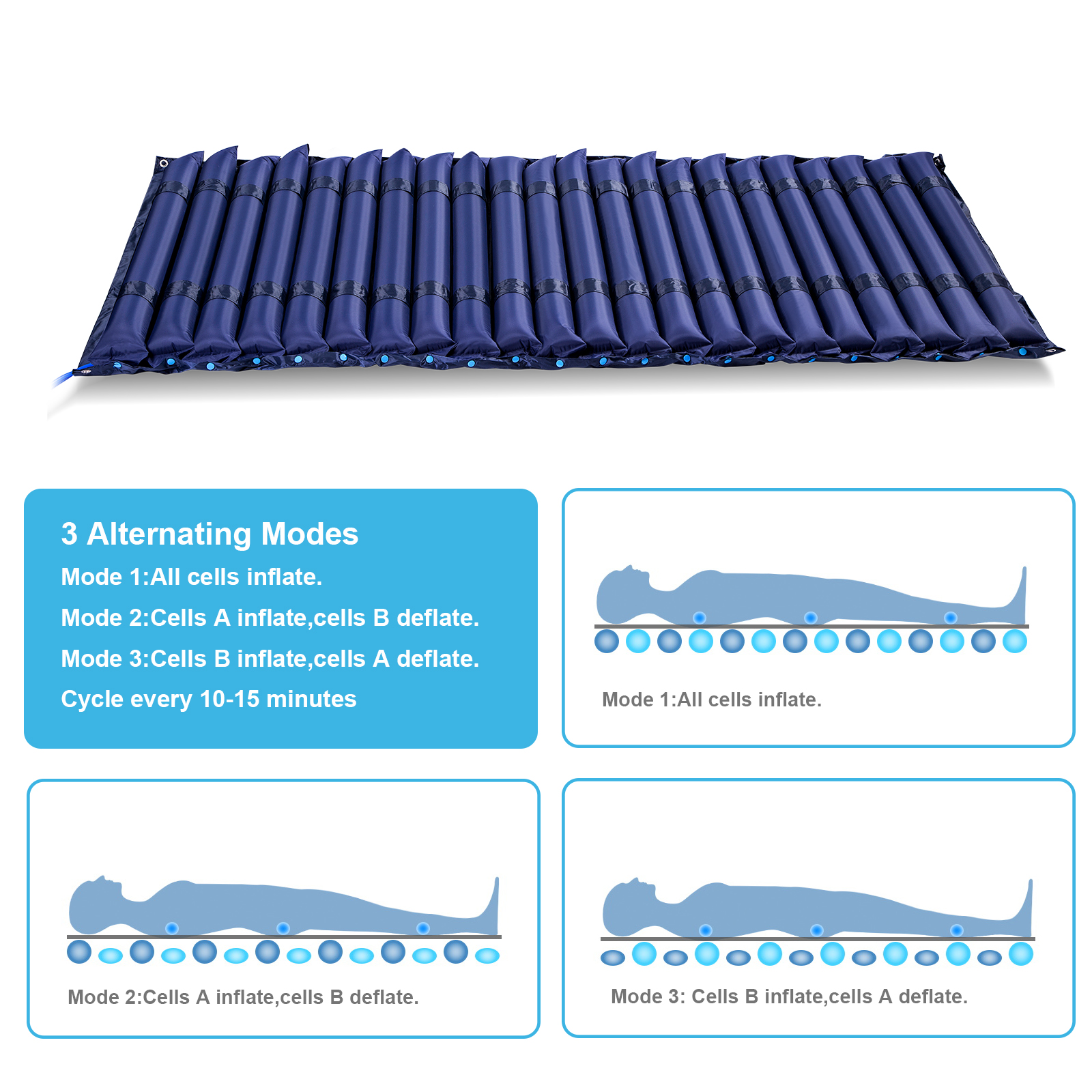

Anti-decubitus mattresses come in two structural families, and the difference is not cosmetic. Bubble mattresses use a grid of small circular cells — typically 130 or more — inflating in a checkerboard pattern. Tubular mattresses use long transverse strips running the width of the bed, alternating in two interleaved groups.

Bubble designs are cheaper to manufacture and adequate for short-term use. But they have a structural weakness: each cell supports a small area, so a heavier patient sinks between cells until the mattress bottoms out against the bed frame. Once that happens, the alternating cycle stops relieving pressure — the tissue is compressed against a solid surface regardless of which cells are inflated.

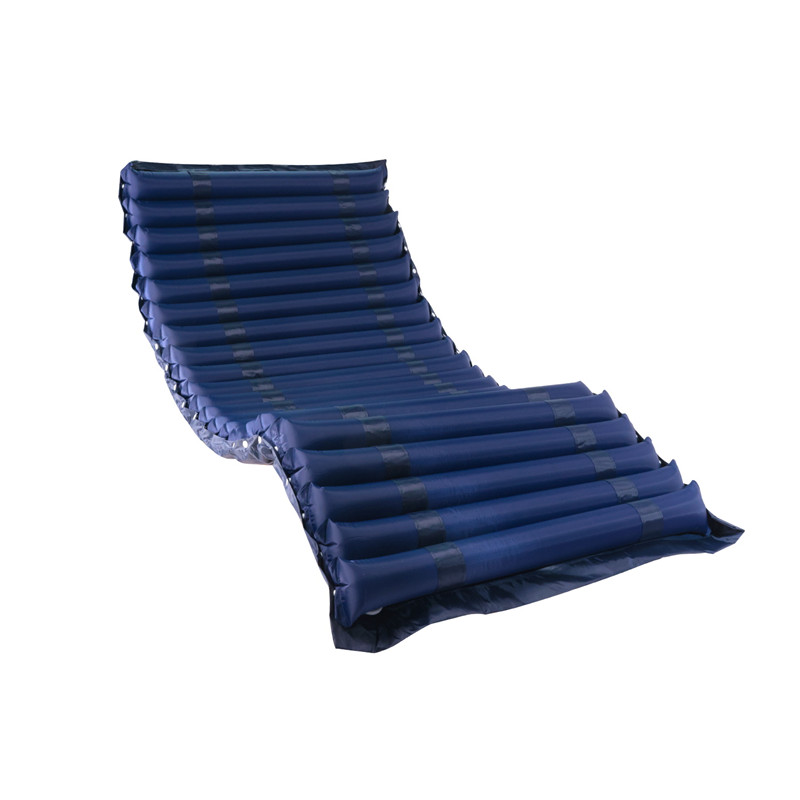

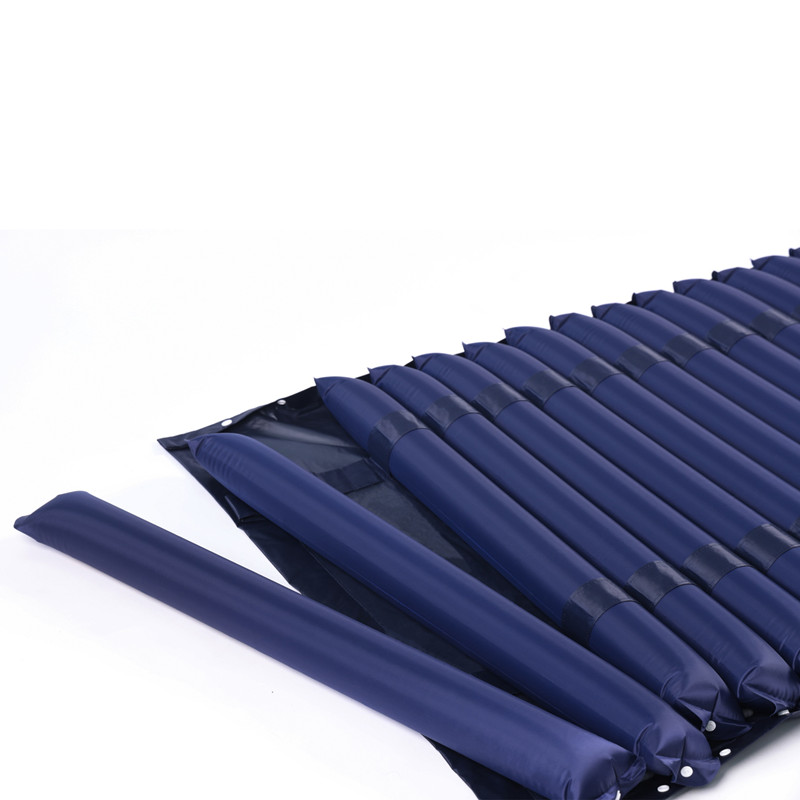

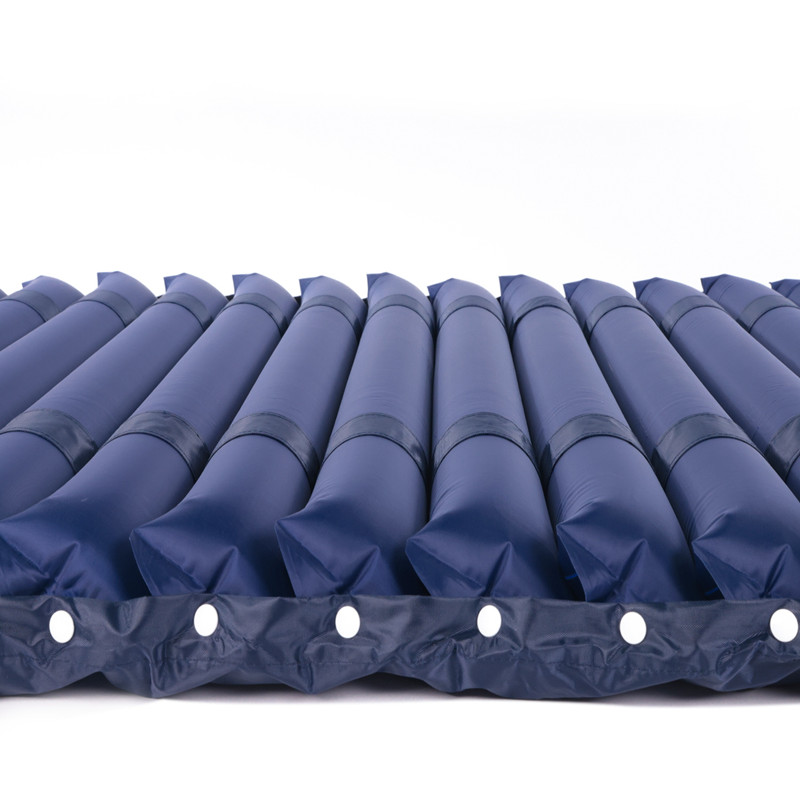

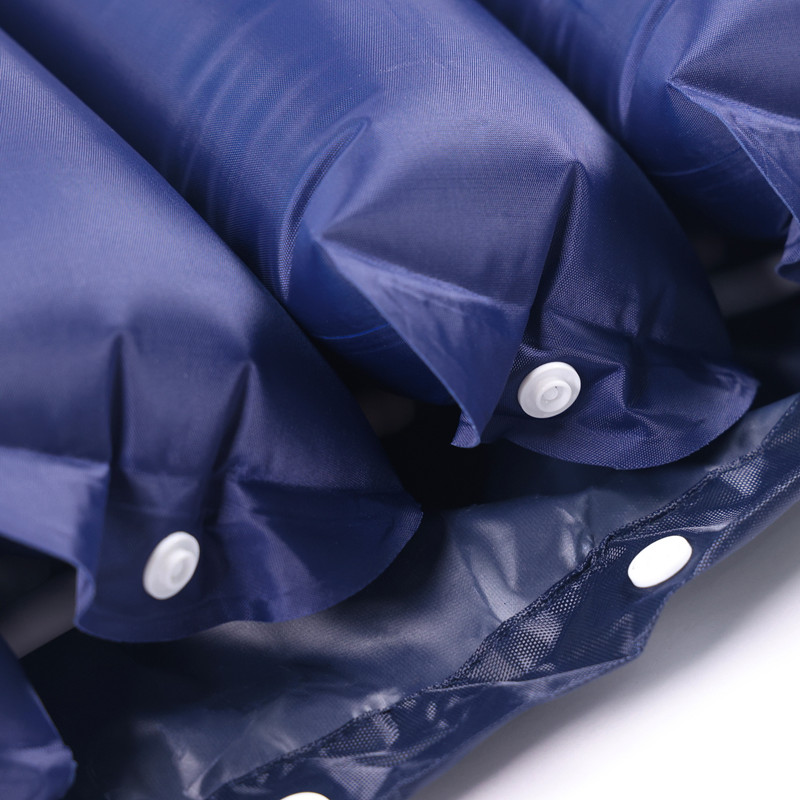

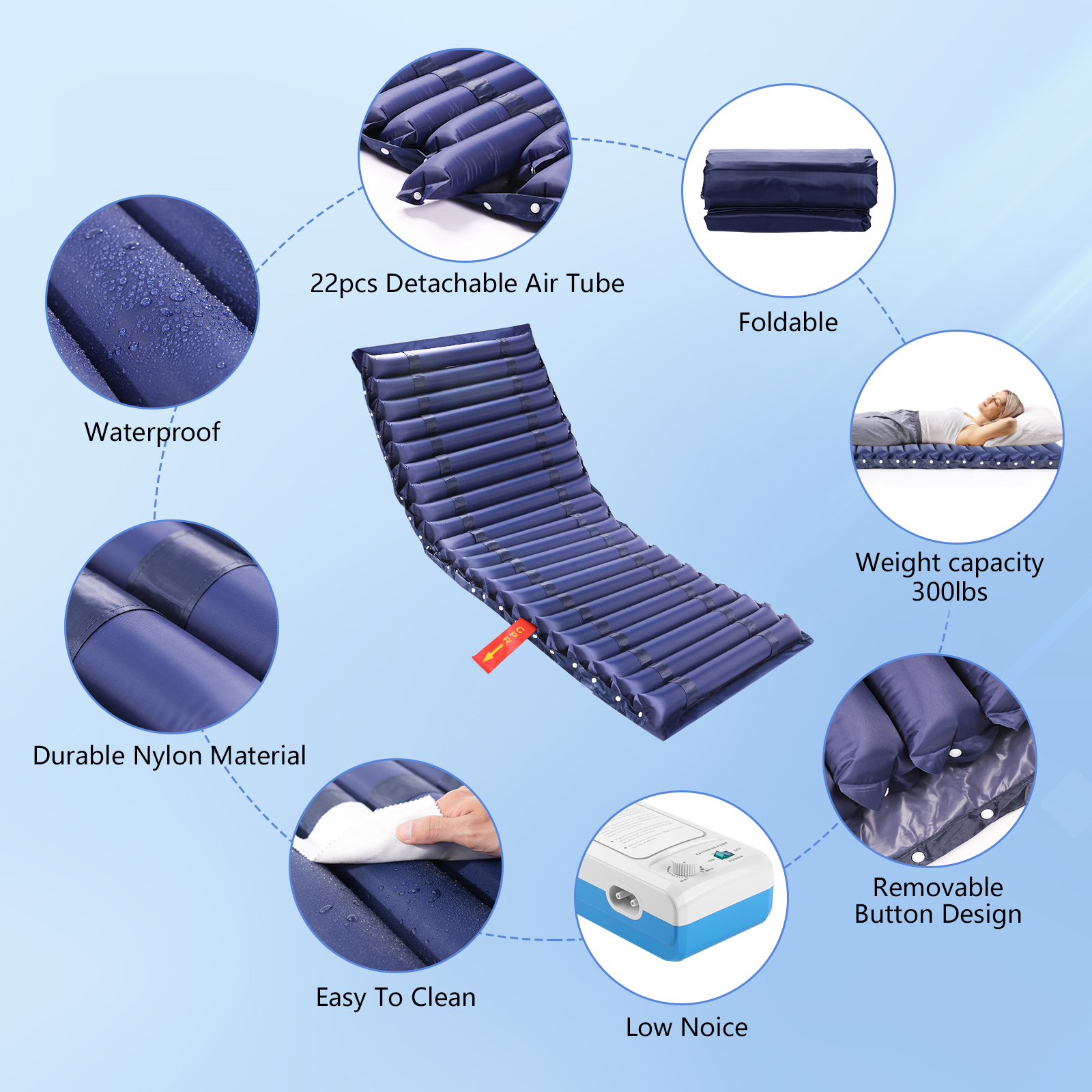

The Fitconn FU-AM002 uses 22 tubular air cells in a strip configuration. Each tube spans the full width of the mattress, distributing load across a linear support rather than a point. The result is a support surface that maintains its relief geometry under sustained weight — which is precisely the condition under which pressure ulcers develop.

The Pressure Numbers That Matter

The pump delivers a working pressure range of 15 to 20 kPa (115 to 150 mmHg) with an air output of 5.0 to 5.5 litres per minute, cycling on a 10 to 15 minute alternation.

That cycle timing is the clinically significant specification. Capillary closing pressure — the point at which external compression collapses capillary blood flow — sits at roughly 32 mmHg. Tissue can tolerate brief ischaemia, but sustained occlusion beyond about two hours initiates necrosis. A 10 to 15 minute alternating cycle means each tissue region is fully offloaded four to six times per hour, restoring perfusion long before ischaemic damage accumulates.

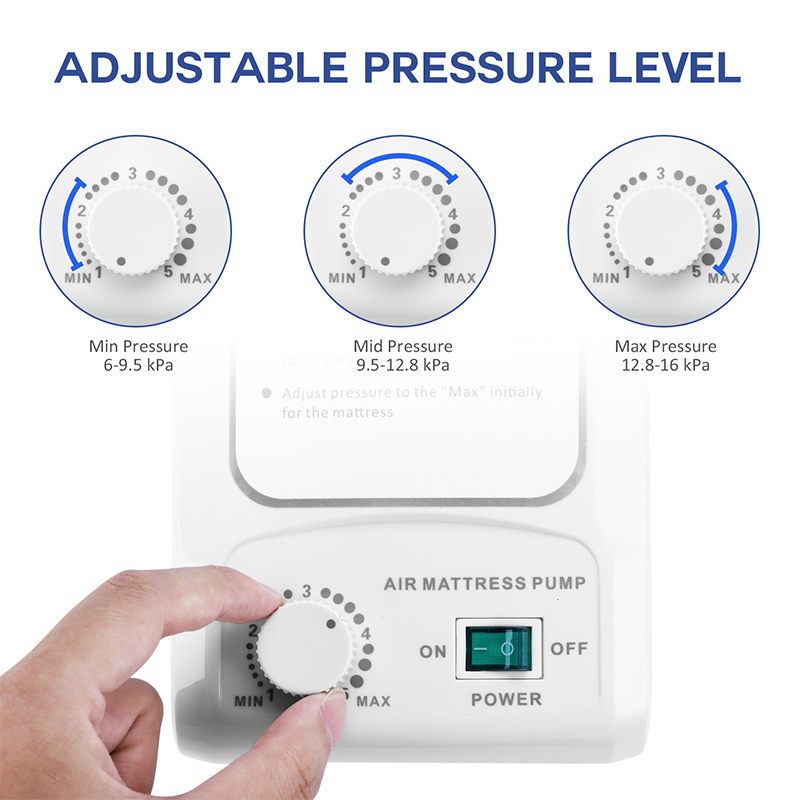

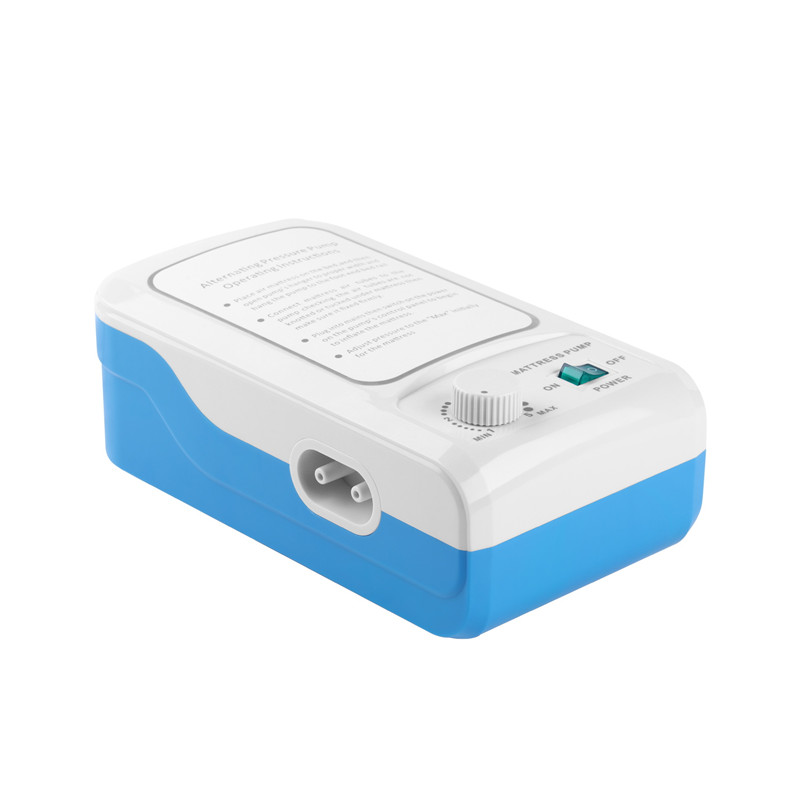

The rotary pressure adjustment knob on the pump control panel lets the caregiver tune firmness between MIN and MAX. This is not a comfort preference — it is a clinical adjustment. A lightweight elderly patient requires lower pressure to achieve tissue offloading; a heavier patient needs higher pressure to prevent bottoming out. A fixed-pressure mattress serves one body weight well and every other weight poorly.

Waterproof, Breathable, Flame Resistant

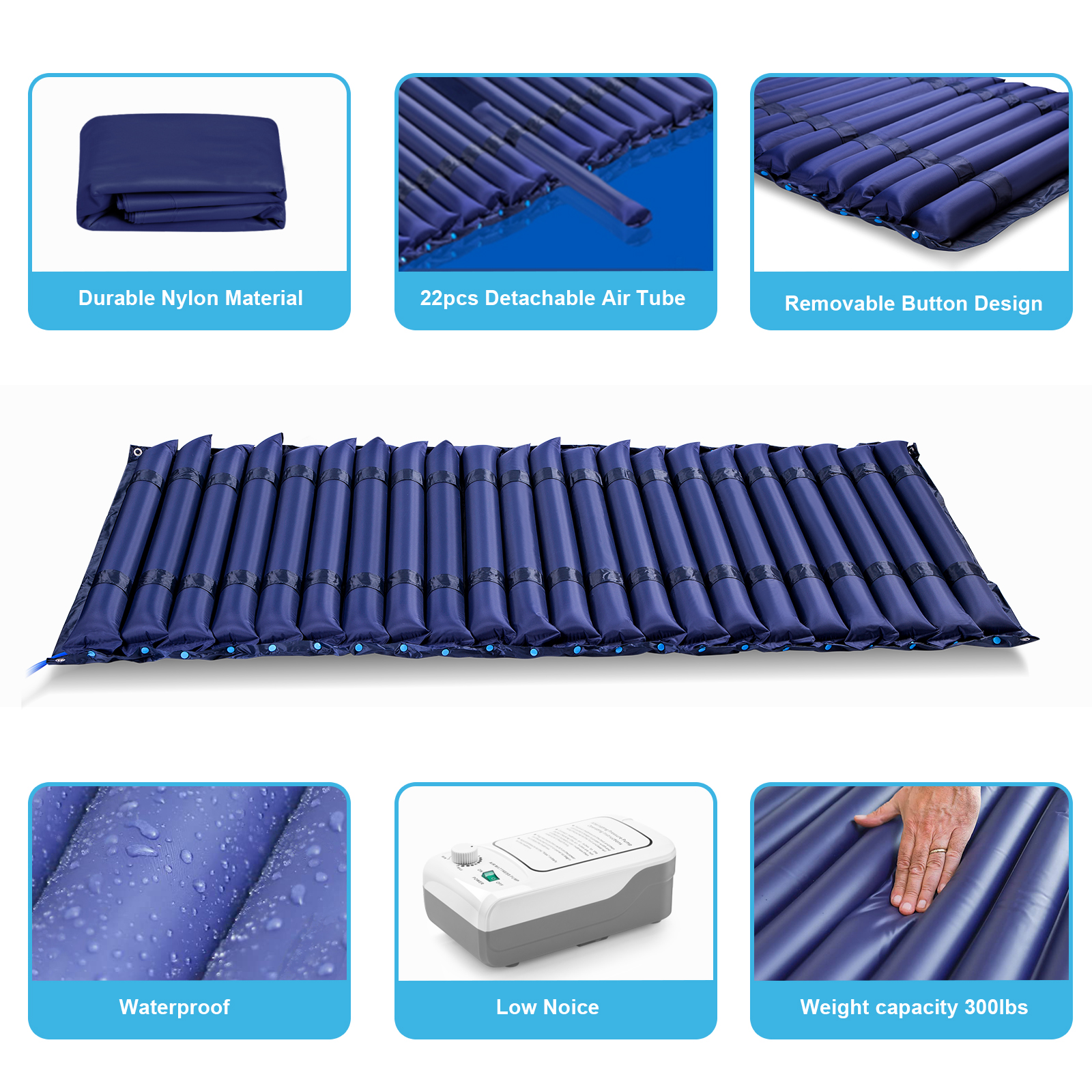

The mattress is constructed from nylon-coated PVC at 0.3 to 0.4 millimetre thickness, and the material specification carries three properties that matter in long-term care:

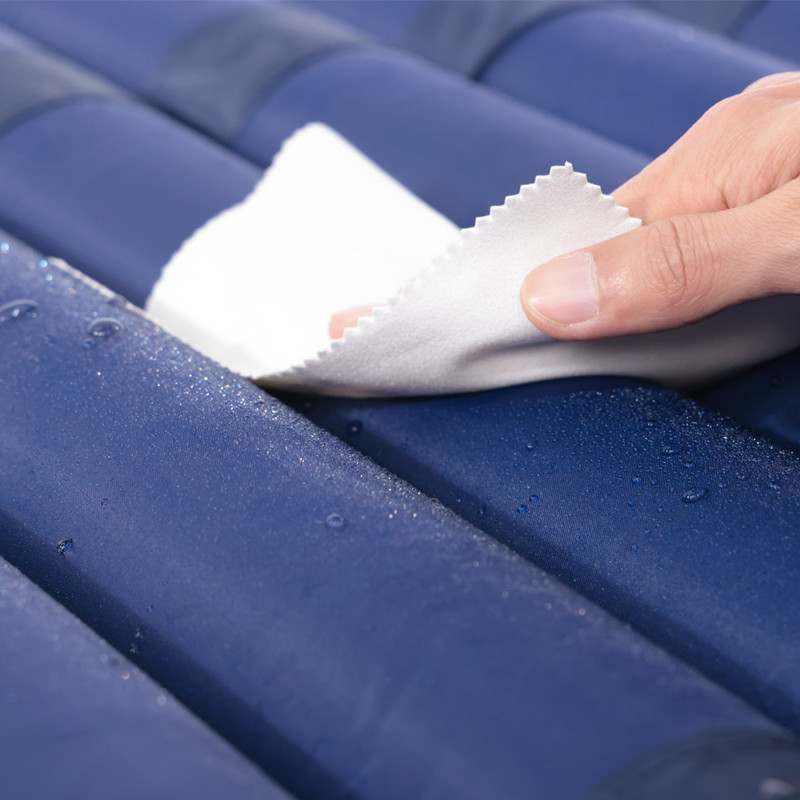

Waterproof. Incontinence, wound exudate, and perspiration are routine on a bedridden patient's mattress. A non-absorbent surface keeps contamination on top where it can be wiped away with disinfectant, rather than soaking into a core that cannot be cleaned.

Breathable. The nylon coating permits vapour transmission, reducing the moisture accumulation between skin and surface. This matters because macerated skin — softened by prolonged moisture exposure — develops pressure damage at significantly lower loads than dry skin. Moisture management is a pressure ulcer prevention measure in its own right.

Flame resistant. Fire retardancy is a regulatory requirement for bedding in most institutional care settings and a meaningful safety margin in home environments where oxygen concentrators, heating pads, and electrical equipment operate near the bed.

Under Two Pounds

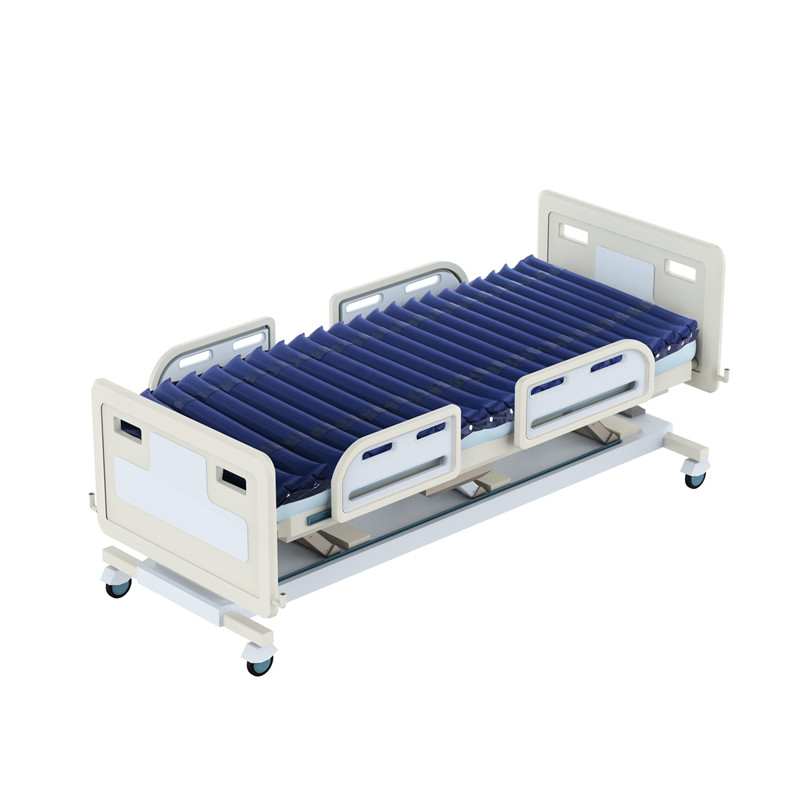

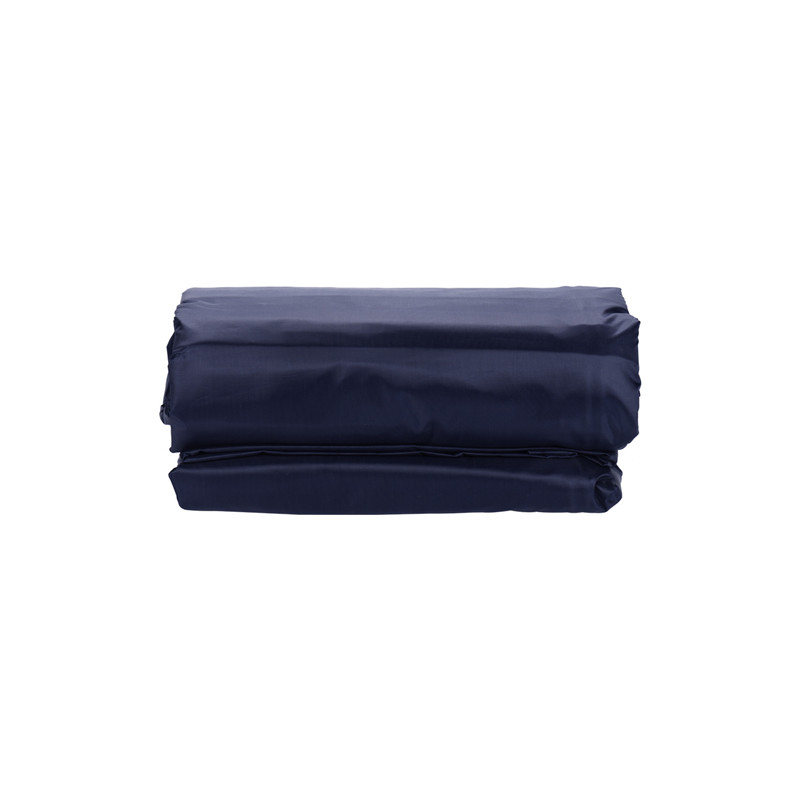

The mattress weighs less than two pounds — under 0.9 kilograms — deflated. Inflated dimensions are 185 by 85 by 6.5 centimetres, sized to standard hospital and home care bed frames, with a deflated footprint of 190 by 90 centimetres.

The weight figure is a handling specification, not a marketing statistic. Installing an anti-decubitus mattress requires positioning it under a patient who often cannot be moved easily. A caregiver working alone must lift, slide, and align the mattress while managing the patient. Two pounds is manageable single-handed. A heavier alternative requires a second person, and a second person is frequently not available.

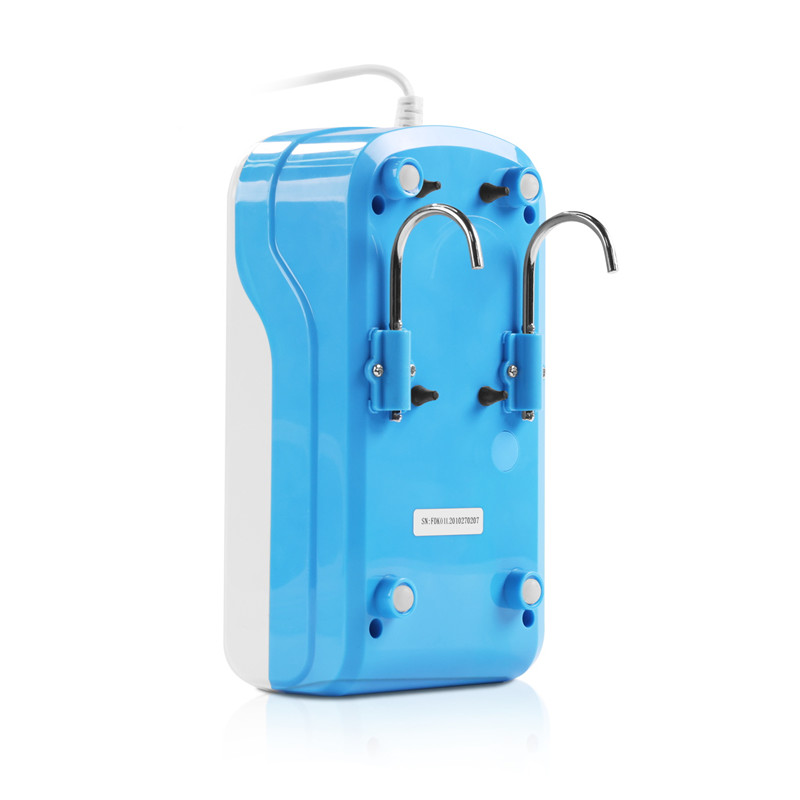

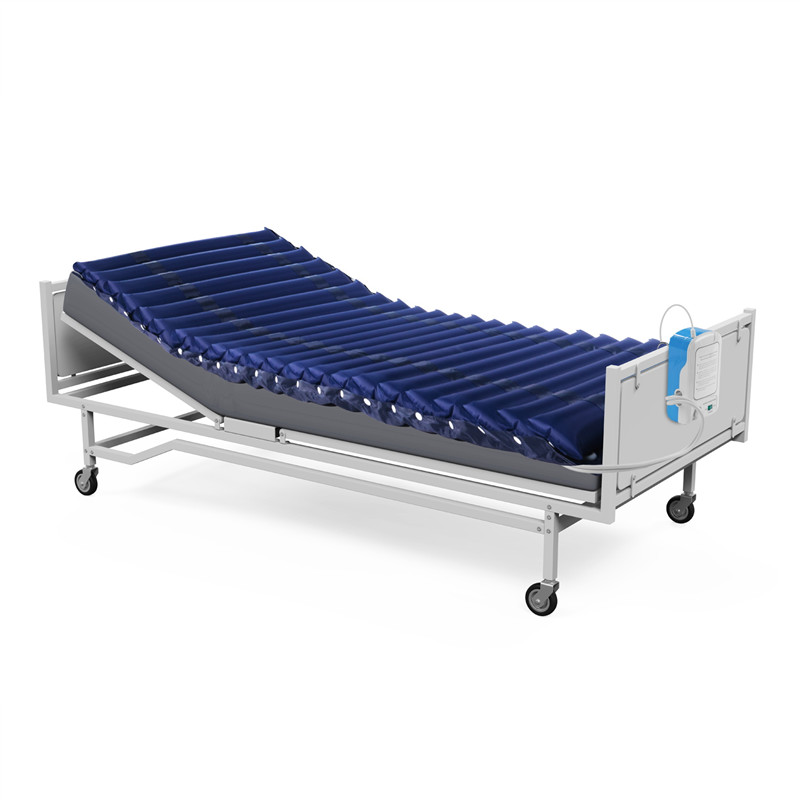

The 10-watt pump measures 21.5 by 12.0 by 8 centimetres at 1.0 kilogram, accepts AC 220/230V or 110V at 50/60Hz, and hangs on the bed frame footboard. Ten watts running continuously costs a negligible amount of electricity — relevant because the system is designed to operate 24 hours a day for months.

Quiet Enough for a Bedroom

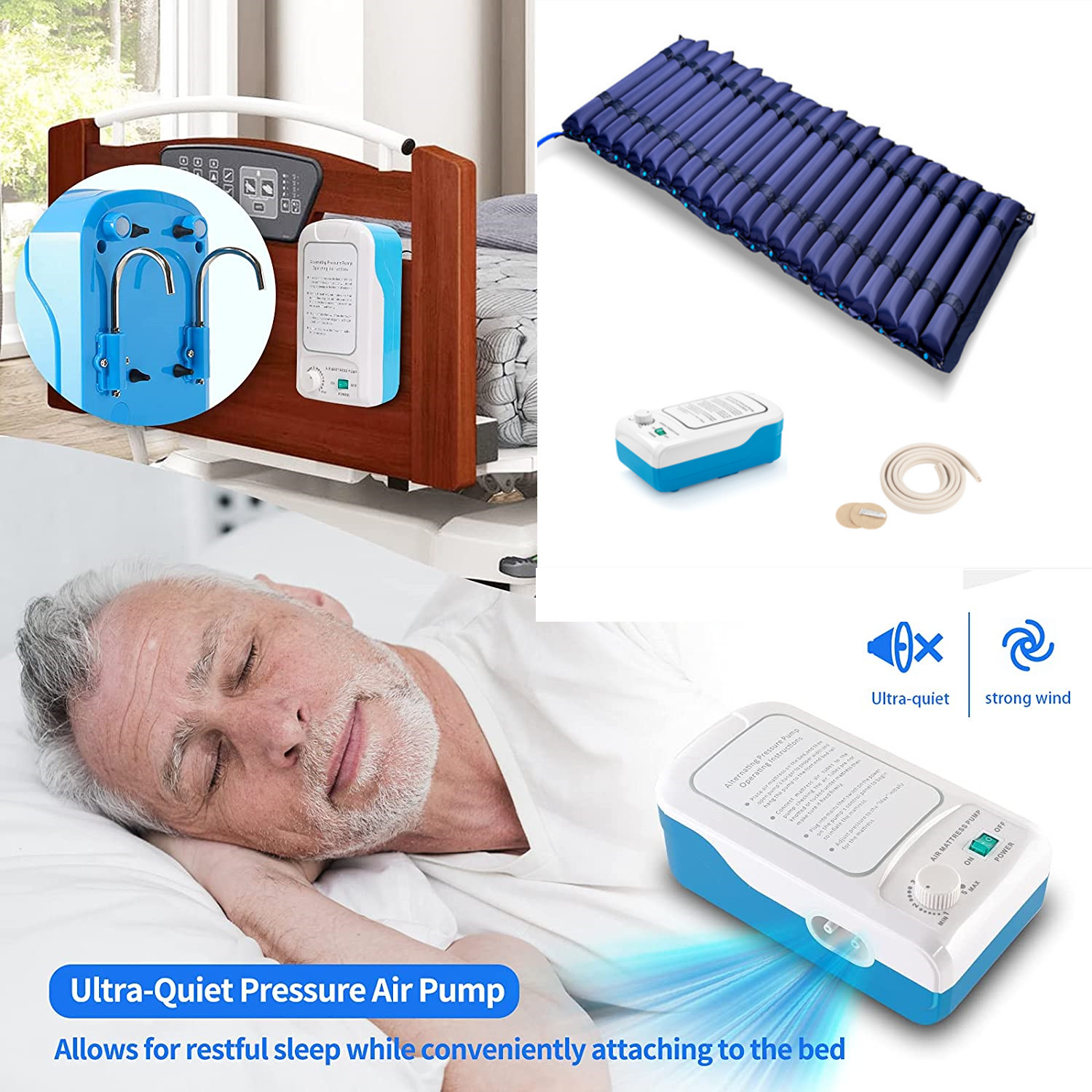

The pump is specified as a quiet pump, and buyer feedback confirms low operating noise. This is not a minor consideration. The mattress runs continuously in the room where the patient sleeps. A noisy compressor cycling every ten minutes through the night degrades sleep quality for both the patient and any caregiver sleeping nearby — and sleep deprivation in a recovering patient measurably slows healing.

Certification and Regulatory Position

The FU-AM002 carries CE marking via an ECM (Ente Certificazione Macchine) documentation review report covering the anti-decubitus mattress with pump across the FU-AM series, alongside MDR EU and 93/42/EEC medical device compliance. The manufacturer holds an NQA-certified ISO 13485:2016 quality management registration under UKAS accreditation, an SGS certificate under Directive 93/42/EEC Annex V, an ISET certificate of compliance to EN 60601-1-2:2014 for electromagnetic compatibility, and a Chinese design patent issued by the State Intellectual Property Office.

EMC compliance under EN 60601-1-2 deserves specific mention for this product category. An alternating pressure pump operating continuously in a room that may also contain an oxygen concentrator, a patient monitor, or a hospital bed motor must not generate electromagnetic interference that disrupts adjacent medical equipment. That certification is not a formality — it is the reason the device can be safely deployed in a multi-device care environment.

Manufacturing Foundation

The FU-AM002 is manufactured by Shenzhen Fitconn Technology Co., Ltd. — 21 years in home healthcare device production, a 4.9 out of 5 store rating, a 23% reorder rate, and the number one ranking among household medical device factories on its platform.

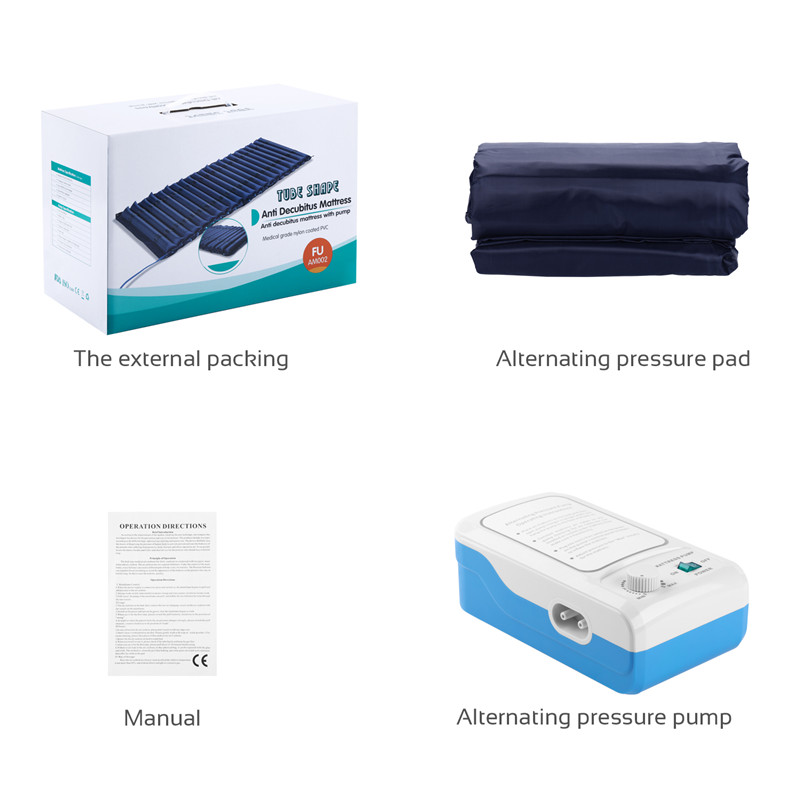

The system ships in a 50 by 50 by 55 centimetre package at 10 kilograms gross weight, in blue, with OEM colour customisation available. The device carries a one-year warranty with return and replacement service.

Who Should Carry This Product

The FU-AM002 fits distributors serving long-term and heavier-patient care rather than short-term post-surgical recovery. The tubular cell structure, adjustable pressure control, and flame-resistant material specification are the features that matter when a patient will remain on the surface for months rather than weeks, and when body weight exceeds what a bubble mattress can support without bottoming out.

For institutional procurement — nursing homes, rehabilitation facilities, long-term care wards — the EN 60601-1-2 EMC certification and flame resistance are frequently non-negotiable line items in tender specifications. This product clears both.

The Final Word

The distinction between a bubble mattress and a tubular mattress is invisible in a product photo and decisive in clinical outcome. Twenty-two full-width air tubes maintain relief geometry under load; a grid of small cells does not, once patient weight exceeds the design point. The Fitconn FU-AM002 is built for the harder version of the problem — the patient who is heavier, who will be immobile longer, and for whom the mattress bottoming out silently at three in the morning is the difference between intact skin and a Stage 3 ulcer six weeks later.
