Digital Fetal Doppler Clinical Natural Fetal Doppler Baby Heartbeat Monitor

Description

The Listener of Life's Rhythm: Clinical-Grade Digital Fetal Doppler Monitor

The journey of welcoming new life is filled with anticipation and a subtle, underlying anxiety. Every fetal movement, every heartbeat, is the most intimate dialogue between the baby and the world. This clinical-grade digital fetal Doppler monitor is born to capture this precious rhythm. It is not a cold medical instrument, but an emotional bond connecting parents and fetus, condensing hospital-level professional monitoring technology into a compact, safe, and home-use device. Through advanced ultrasound technology, it transforms every beat of the fetal heart into a clear, audible sound, like a galloping pony, allowing you to listen to the miracle of life and feel that irreplaceable peace and joy from the comfort of your home.

Core Technology Principle: Precision Capture Based on the Ultrasonic Doppler Effect

The core of this device lies in its sophisticated ultrasonic Doppler technology. Its working principle is not simply to amplify sound, but to actively emit a beam of ultrasound, inaudible to the human ear, with a frequency typically between 2MHz and 3MHz. This ultrasonic beam penetrates maternal tissue, and when it encounters a moving object—the rapidly moving blood cells in the fetal heart—its frequency changes. This is the famous "Doppler Effect" in physics. The high-sensitivity receiver built into the device captures these reflected waves with shifted frequencies and, through a complex signal processing unit, converts these frequency changes into an audio signal that humans can hear in real-time. Therefore, what you hear is not the mechanical sound of the fetal heart valves opening and closing, but the unique sound of blood rushing through the heart and major blood vessels, a rhythm perfectly synchronized with the heartbeat, clear and full of life.

Medical-Grade Precision and Display: Real-time Data at a Glance

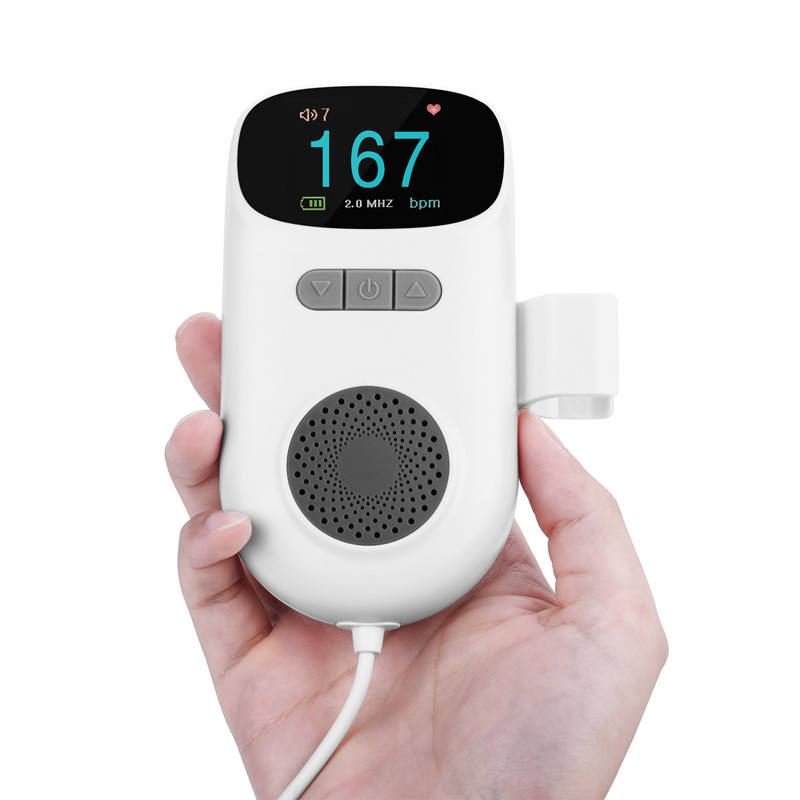

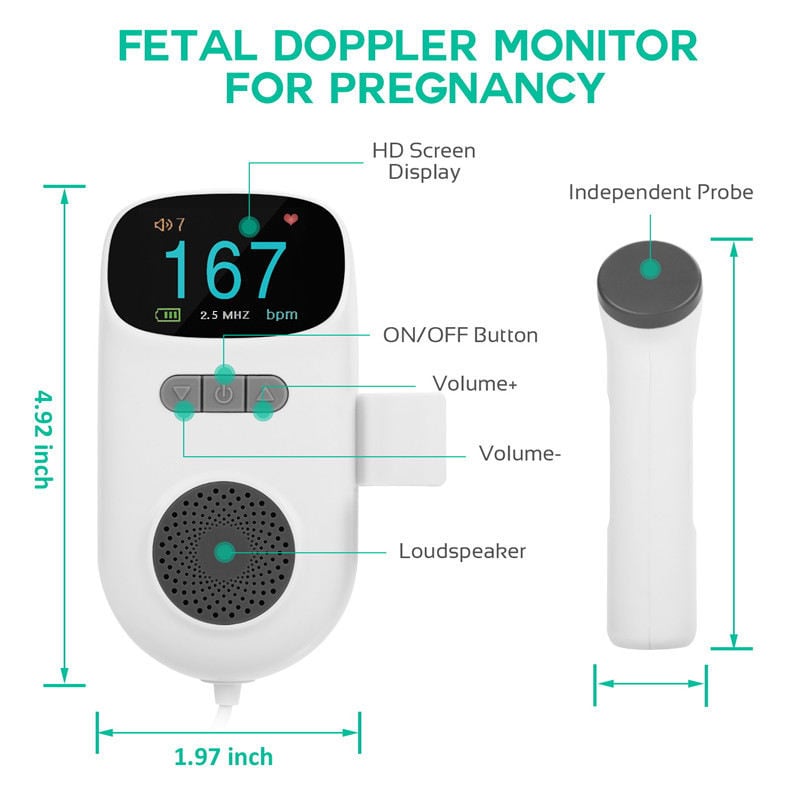

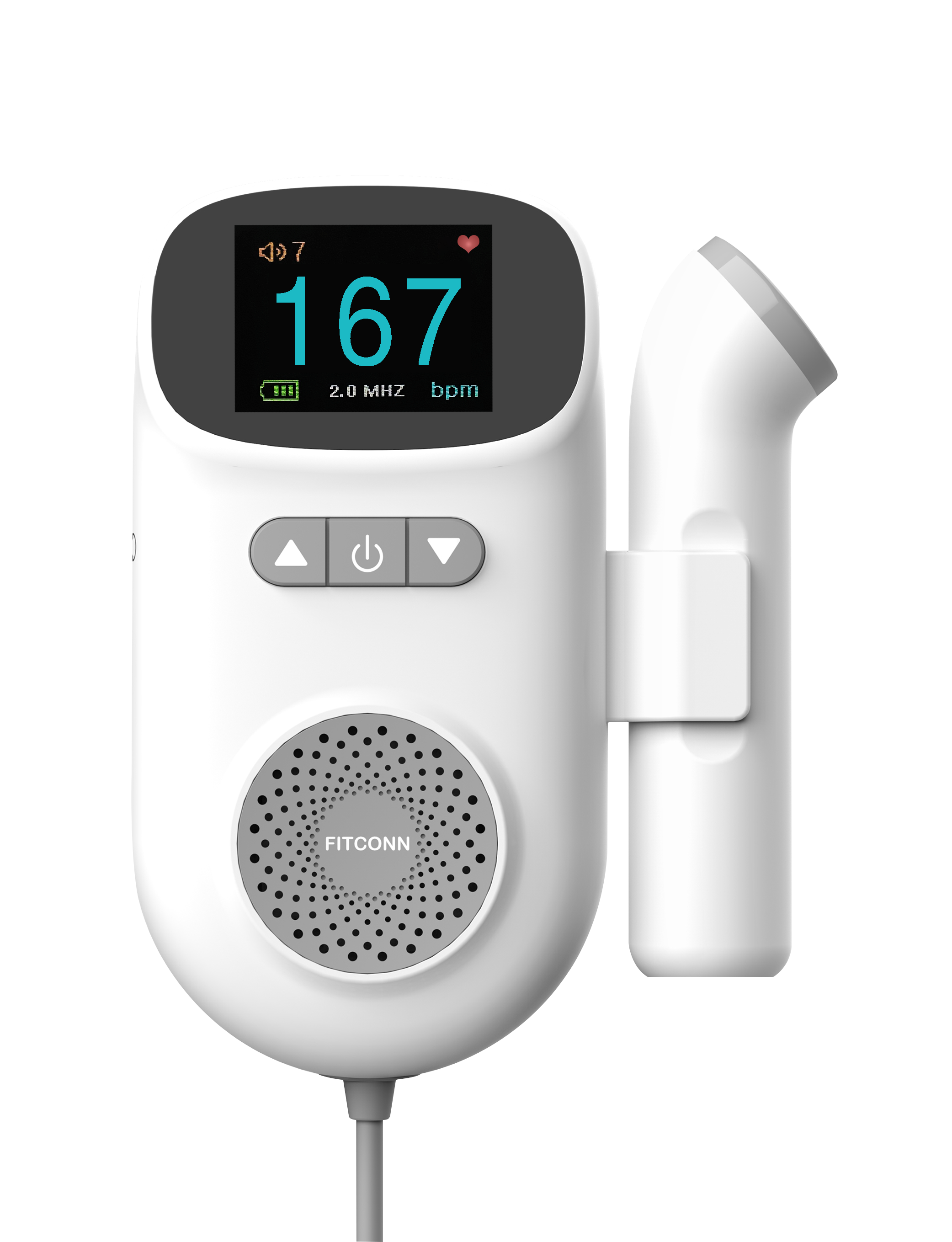

To provide more comprehensive monitoring information, this fetal Doppler monitor is equipped with a high-resolution Liquid Crystal Display (LCD). The screen not only displays the numerical value of the Fetal Heart Rate (FHR) in real-time, with a measurement range typically covering 50 to 240 Beats Per Minute (BPM) and an accuracy of ±2 BPM. This means every heartbeat is precisely counted and presented digitally, giving expectant parents a more intuitive understanding of their baby's heart rate status.

Some advanced models also feature the ability to display both instantaneous and average heart rates simultaneously. The instantaneous heart rate reflects the baby's current heart rate, while the average heart rate shows the overall trend over a period, and the combination of both provides a richer data dimension for assessing fetal health. Furthermore, the device usually includes an FHR limit alarm function. When it detects a heart rate that persistently exceeds the normal range of 120-160 BPM, it will issue an alert via sound or an icon, serving as a preliminary safety warning.

Probe Design and Acoustic Performance: Wide Beam and High Sensitivity

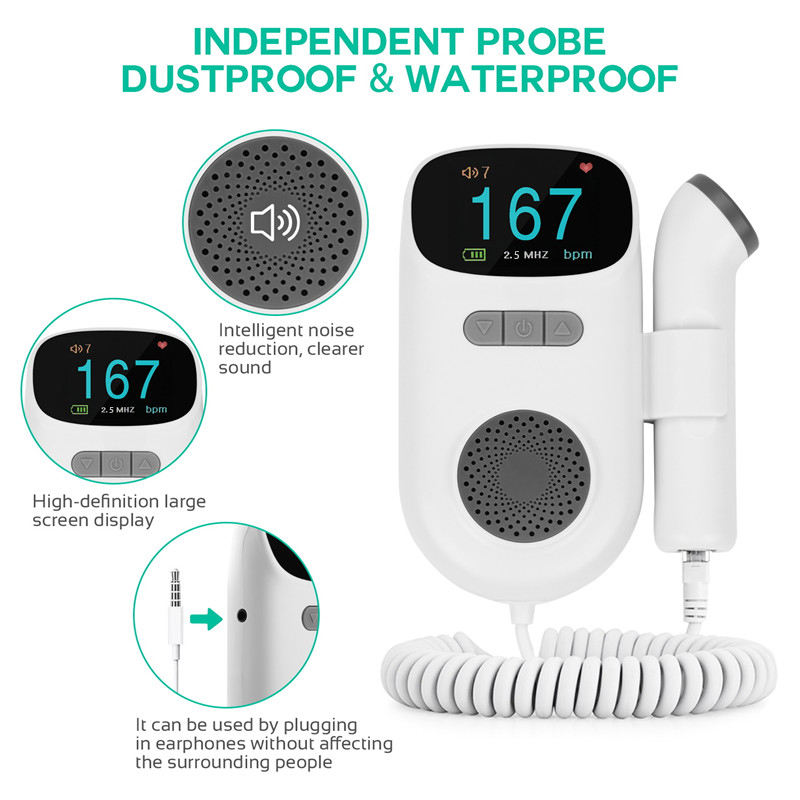

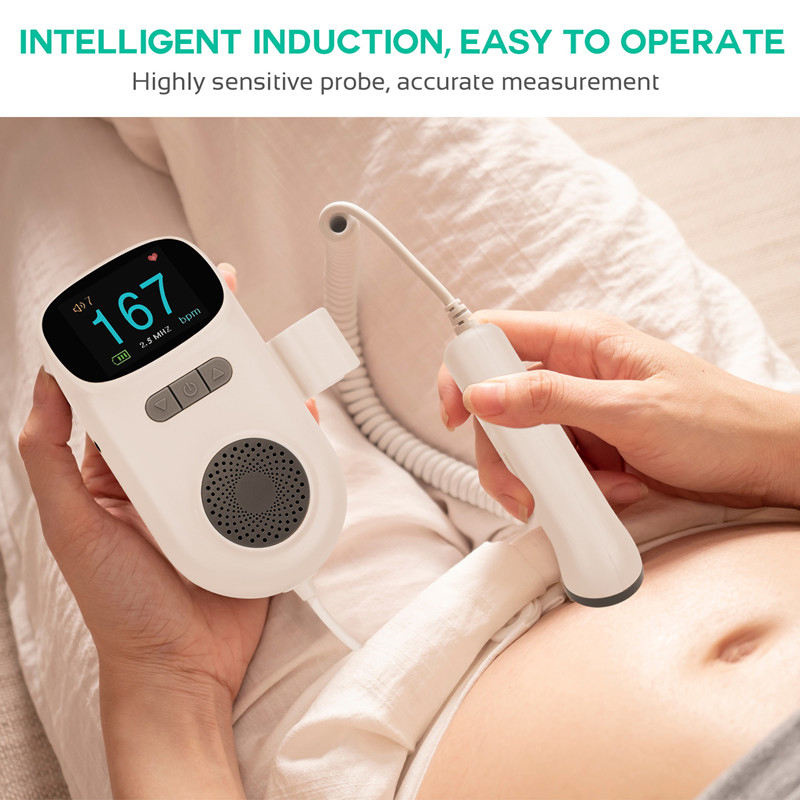

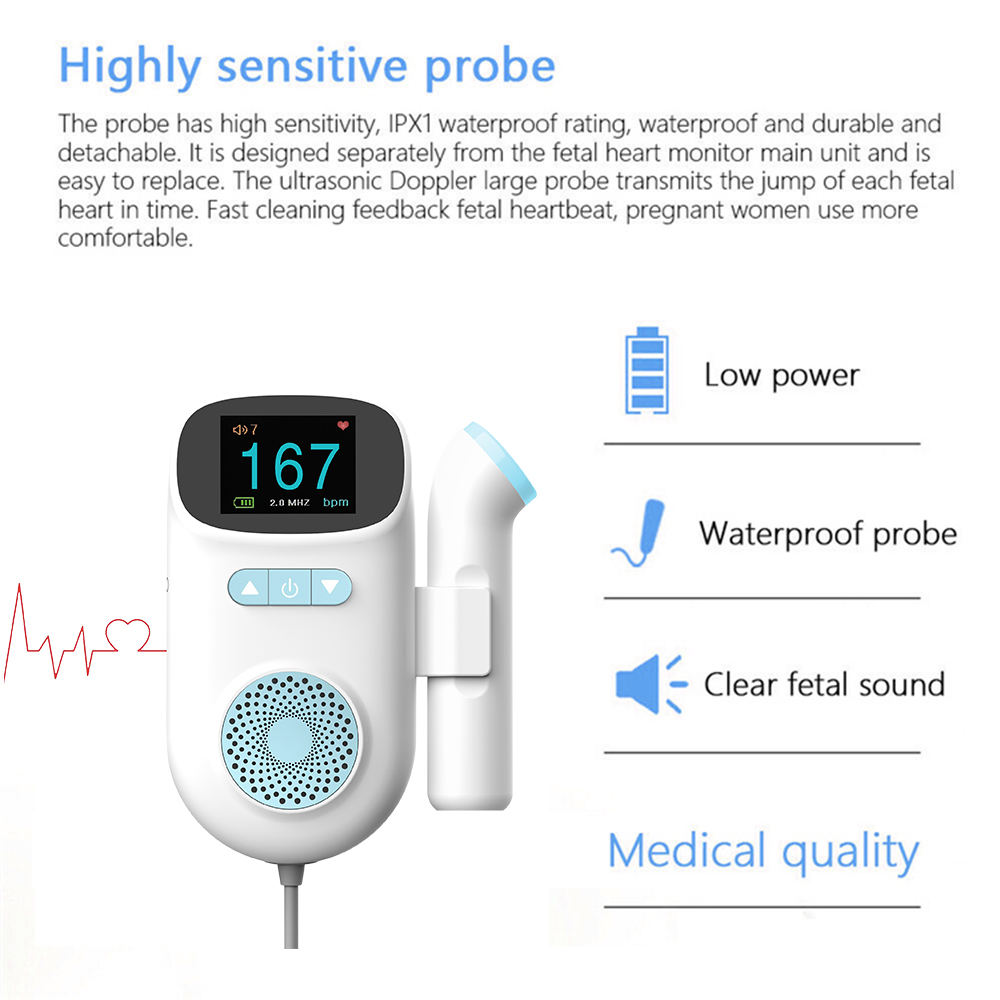

The probe is the "sense organ" that connects the device to the mother's body, and its design directly determines the quality of signal reception. This product features an ultrasonic transducer with a wide-beam design, and its effective radiating area is optimized to expand the coverage of the sound waves. This feature greatly improves the sensitivity of capturing the fetal heart signal, making it easier to find and lock onto the heartbeat even if the fetus's position changes slightly, reducing the frustration of repeated searching.

At the same time, the device integrates advanced noise-filtering technology. While amplifying the target signal, it can effectively suppress interference from background noises such as the mother's abdominal aortic pulsation and intestinal peristalsis, making the final output of the fetal heart sound purer and clearer. The ultrasonic acoustic output power of the device is strictly controlled within safety standards (typically far below 100mW/cm²), ensuring effective listening while minimizing the output of ultrasonic energy, reflecting a high regard for fetal safety.

Safety Standards and Compliance: A Health Guardian You Can Trust

As a device involving maternal and infant health, its safety is the top priority in its design. During its research, development, and production, this product strictly adheres to international medical device safety standards, such as the EN60601 series. This means it has undergone rigorous testing and certification in terms of electrical safety, mechanical safety, and radiation safety.

The device's built-in Mechanical Index (MI) and Thermal Index (TI) are both less than 1, which are key indicators for measuring the biological effects of ultrasound equipment, ensuring that under normal use conditions, the ultrasonic energy will not pose potential risks such as thermal effects or cavitation to fetal tissues. The product has also typically obtained certifications from international authoritative bodies such as CE and FDA, as well as China's Medical Device Registration Certificate ("Medical Device Number"), proving its legality, safety, and efficacy as a medical device, allowing users to use it with complete confidence in a home environment.

Human-Centric Interaction and Features: Easy Operation, Thoughtful Experience

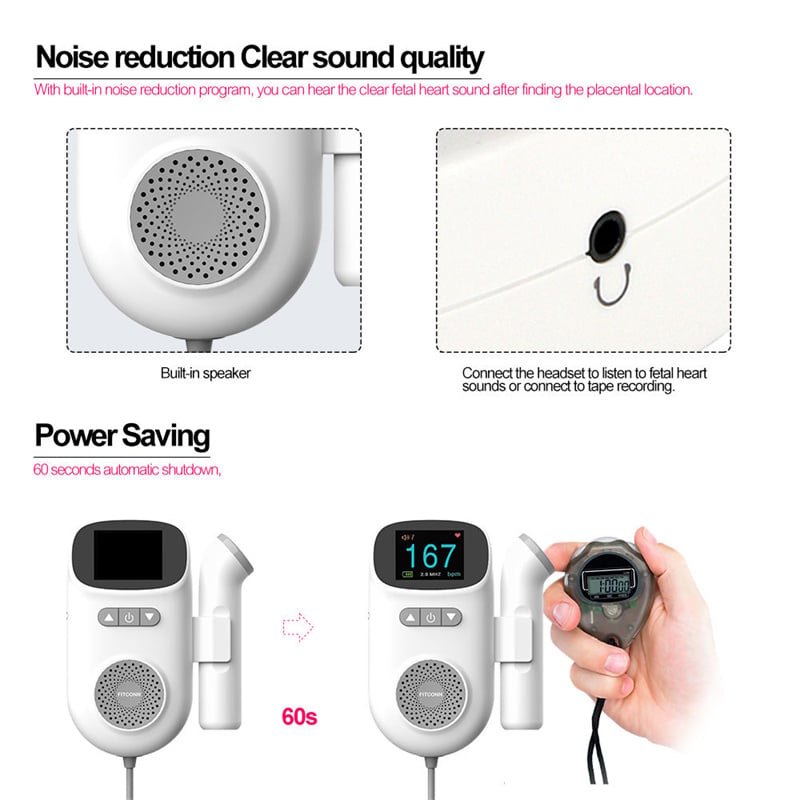

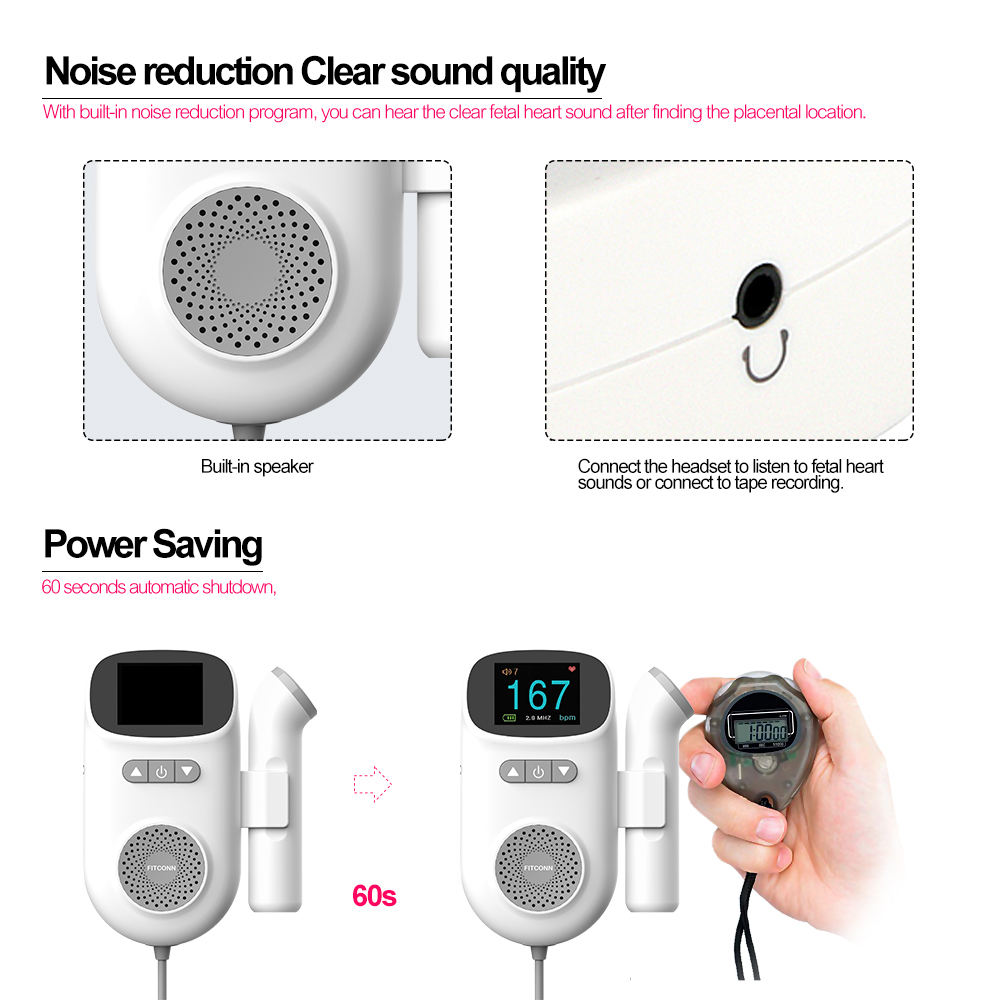

To enhance the user experience, the device integrates multiple user-friendly features. The built-in high-fidelity speaker can clearly play the fetal heart sound, while the headphone jack allows users to connect headphones to listen in a private and quiet environment without disturbing others. Some models also support a recording function, allowing you to record the precious sound of your baby's heartbeat as a unique growth memory to share with family.

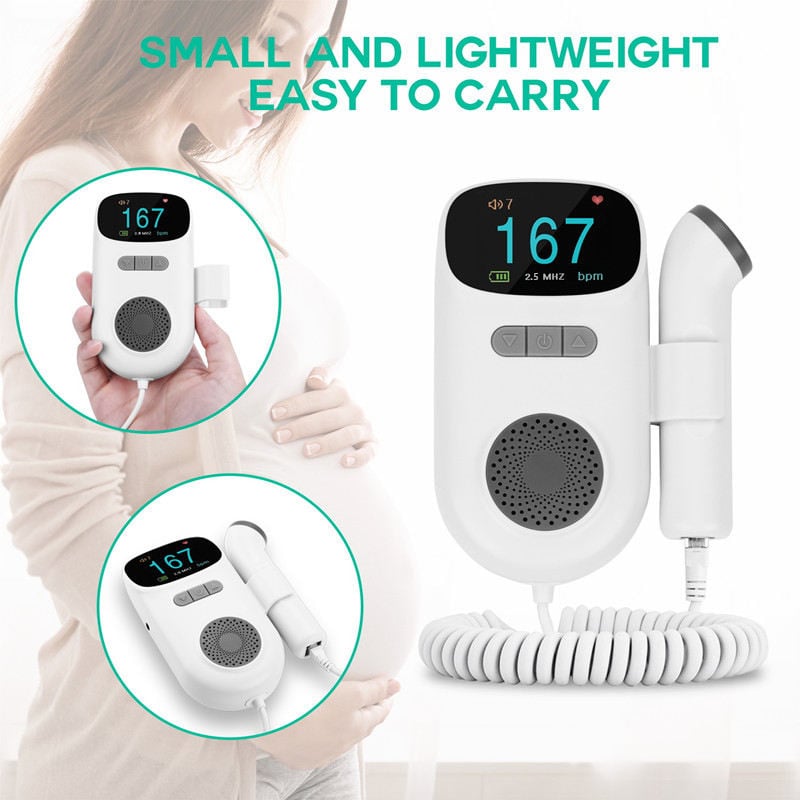

The device is powered by a rechargeable lithium battery or standard dry batteries and features a clear battery level indicator, including charging, fully charged, and low battery prompts, making it easy for users to manage power and ensure it is always ready for use. In addition, the auto-power-off function automatically shuts down the device after one minute of inactivity, effectively saving power and extending battery life. Its compact and lightweight body design makes it easy to hold and operate, whether on a comfortable sofa at home or while traveling, allowing for easy monitoring of the baby's heartbeat.

Applicable Period and Usage Recommendations: Scientific Monitoring, Reassuring Companionship

This fetal Doppler monitor is suitable for routine home monitoring during the second and third trimesters of pregnancy. Generally, starting from the 16th week of pregnancy, as the fetal heart develops and its position becomes relatively fixed, it is possible to clearly hear the fetal heartbeat using a high-sensitivity Doppler device. For pregnant women after 28 weeks, regular fetal heart monitoring is particularly important for assessing the baby's health status in the womb.

It is important to clarify that this device is a useful supplement to prenatal care, used for emotional connection and preliminary monitoring at home, but it cannot replace professional medical diagnosis. Its use should follow the guidance of a doctor or professional, and each use should not be too long. When a persistently abnormal fetal heart rate is detected or if there are any concerns, it is essential to consult a medical professional promptly for a more comprehensive examination. Through scientific and moderate use, it will become a reliable and warm companion on your pregnancy journey.
