Wholesale Inflatable Bubble Anti Bedsore Decubitus Medical Alternating Pressure air Mattress for Hospital Bed

Description

Shenzhen Fitconn Technology Co.,ltd was founded in 2012 . It is a comprehensive enterprise dedicated to the research and development, manufacturing, sales and after-sales service of household medical products. The products cover nebulizer (compressor nebulizer, DC Compressor nebulizer and Mesh nebulizer), anti-decubitus air mattress, oximeters, fetal doppler, blood pressure monitors, etc. The business covers more than 150 countries around the world, with an average annual service of more than 2,000,000 family. Fitconn adheres to the concept of create health by heart, and is committed to improving the diversification of atomization methods, let’s households medical products and modern medical technology can benefit thousands of families around the world, with respect, tolerance, integrity, efficiency, innovation and persistence as core values, Integrate superior resources, take innovation as the source of development, and take science and technology as the foundation of success, and strive to provide each consumer with more professional, advanced and safer medical products. Fitconn has the class II medical device production qualification and over 50 patents , the company has passed the 13485 quality system certification, and some products have passed the EU CE and FDA certification

Fitconn FU-AM001L: The Double-Pipe Design That Keeps Air Moving

Every alternating pressure mattress faces the same engineering constraint: air has to get in and out of dozens of cells, on a repeating cycle, for months without interruption. How that air moves determines whether the mattress delivers consistent pressure relief or degrades into uneven, unpredictable support after a few hundred cycles.

Most budget mattresses use a single-line air path — one pipe feeding a chain of cells in sequence. The cell nearest the pump inflates first and hardest; the cell at the far end inflates last and softest. Over time, that pressure gradient means the patient's shoulders and heels receive measurably different support than their hips. The mattress technically alternates. It just does not alternate evenly.

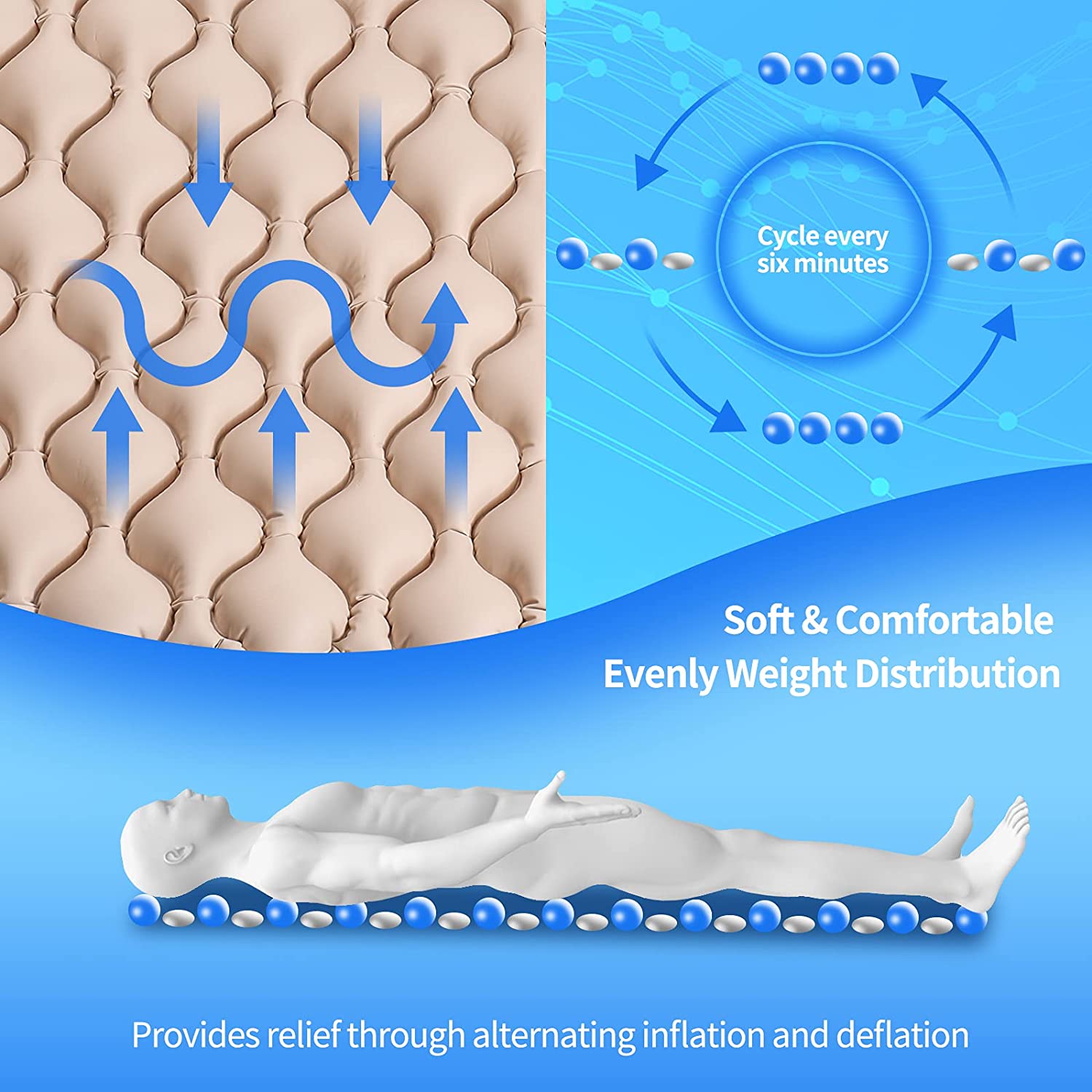

The Fitconn FU-AM001L uses a double-pipe circular design — two independent air pathways that inflate and deflate in a circulating loop rather than a linear chain. Air enters and exits from both directions, equalising pressure across the full length of the mattress. Every cell in a given group reaches working pressure at approximately the same time, which is what makes the alternating cycle clinically reliable rather than nominally present.

Three Modes, Including One Most Competitors Skip

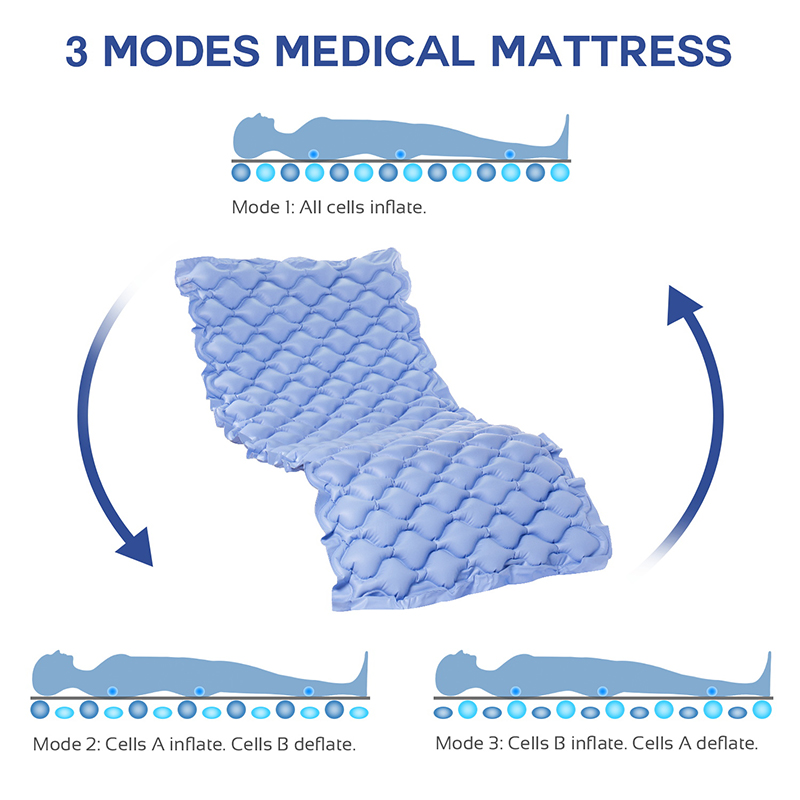

The FU-AM001L runs three distinct operating modes:

Mode 1 — Full inflation. All cells inflate simultaneously, converting the mattress into a uniform static support surface. This is the mode used during patient transfers, wound dressing changes, physical examinations, and bed baths — any procedure requiring a stable, non-shifting platform. Many low-cost alternating mattresses omit this entirely, forcing caregivers to either work on a moving surface or unplug the pump and lose all support.

Mode 2 — Cell group A inflated, group B deflated. Body weight transfers to the raised cells; tissue over the deflated cells is fully offloaded, capillaries reopen, perfusion returns.

Mode 3 — Reversed. Group B inflates, group A deflates. The previously loaded tissue is now relieved.

The alternation between Modes 2 and 3 accomplishes mechanically what a two-hour manual repositioning schedule accomplishes with human labour — except it runs continuously, silently, and without requiring anyone to wake up.

The Adjustable Firmness Knob

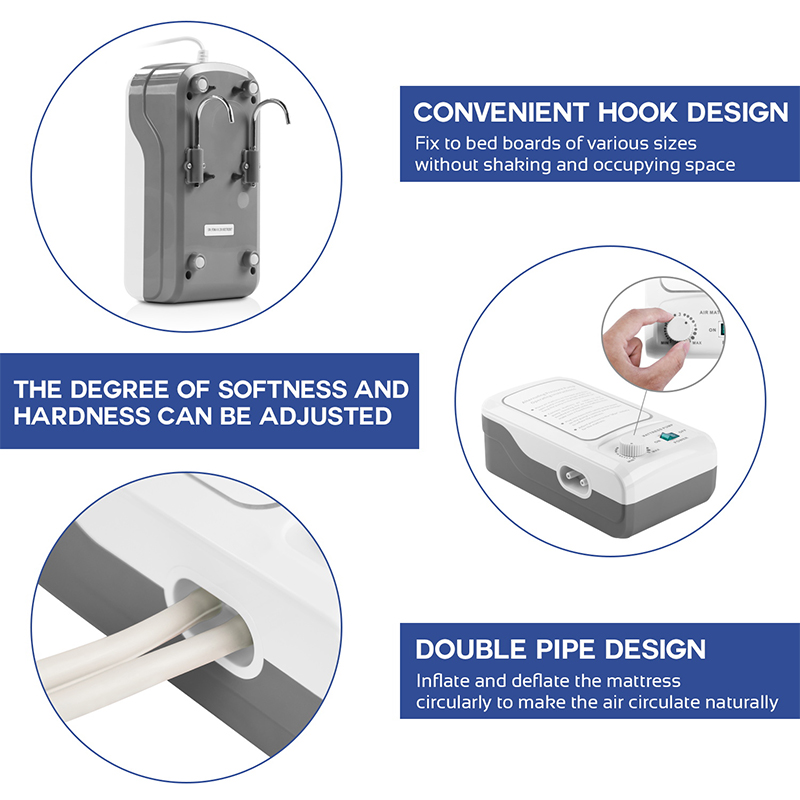

The pump control panel carries a rotary softness/hardness adjustment. This is a clinical control, not a comfort preference.

Pressure relief works only when the deflated cells sit low enough to genuinely offload tissue while the inflated cells hold the body above the bed frame. A patient weighing 45 kilograms needs substantially lower pressure than one weighing 95 kilograms — set too high, the light patient rides on top of the surface and gets no cell conformity; set too low, the heavier patient sinks through and bottoms out against the frame, at which point the alternating cycle stops relieving anything.

A mattress with fixed pressure serves one body weight well and every other weight poorly. The adjustable knob makes the FU-AM001L viable across the full range of patients a home care distributor or care facility will encounter.

Honeycomb Bubble Structure and Pressure Diffusion

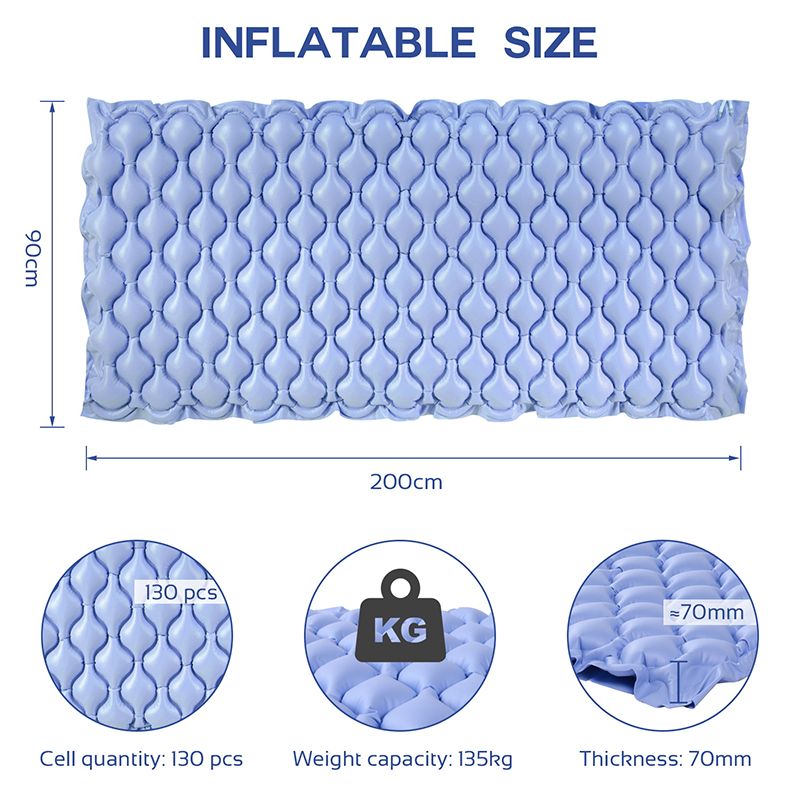

The mattress surface uses a honeycomb bubble texture built from PVC 3PLY laminate at 0.3 to 0.4 millimetre thickness. The three-layer construction resists puncture and abrasion while staying flexible enough to survive thousands of inflate-deflate cycles.

The bubble geometry serves a specific purpose: pressure diffusion. Rather than concentrating load on flat contact patches, the domed cell surfaces distribute weight across curved contact points, spreading the interface pressure over a larger effective area. Combined with the alternating cycle, this reduces peak pressure at bony prominences — the sacrum, heels, hips, and shoulder blades where pressure ulcers overwhelmingly develop.

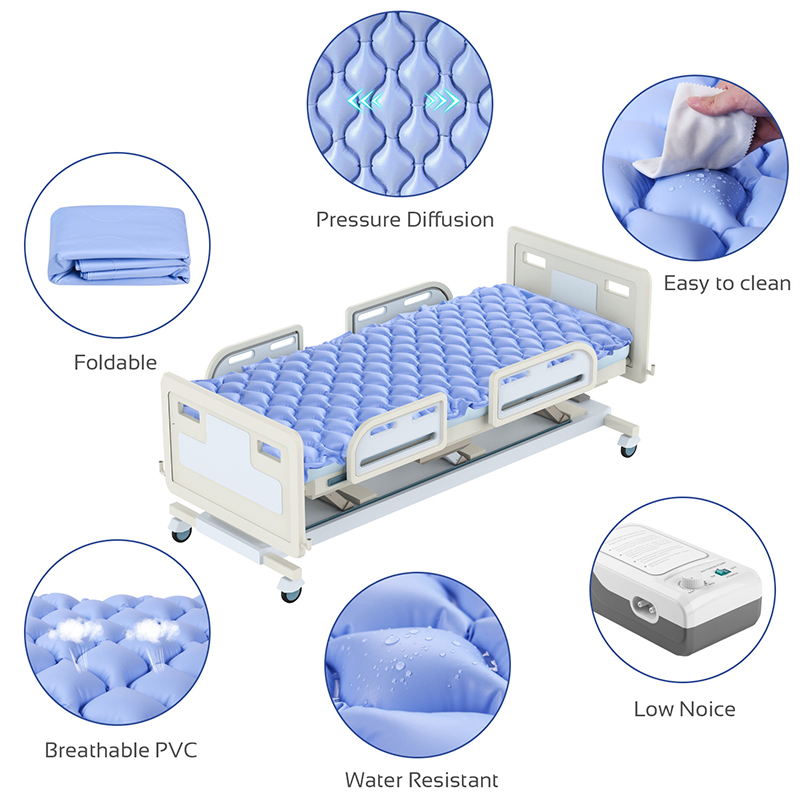

Waterproof, Wipeable, Foldable

Three practical properties define whether a mattress survives real home care conditions.

Waterproof. Incontinence, wound exudate, and perspiration are routine on a bedridden patient's mattress. The PVC surface repels liquid — visible in product imagery as beaded droplets — keeping contamination on the surface where it can be removed.

Easy to clean. The non-absorbent surface wipes down with disinfectant. There is no fabric core to harbour bacteria, no seam to trap fluid, no material that degrades under repeated cleaning.

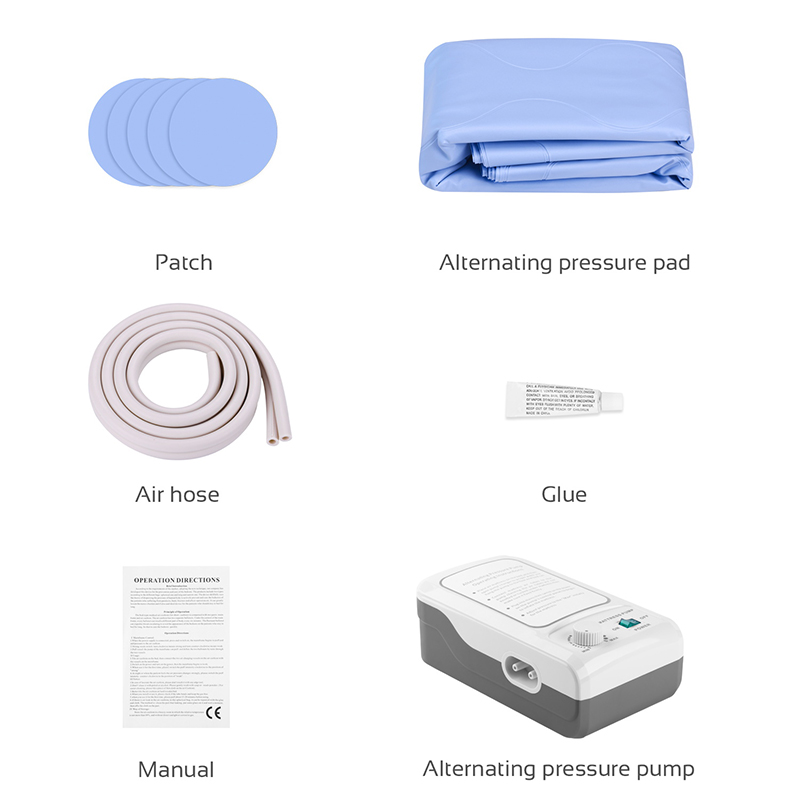

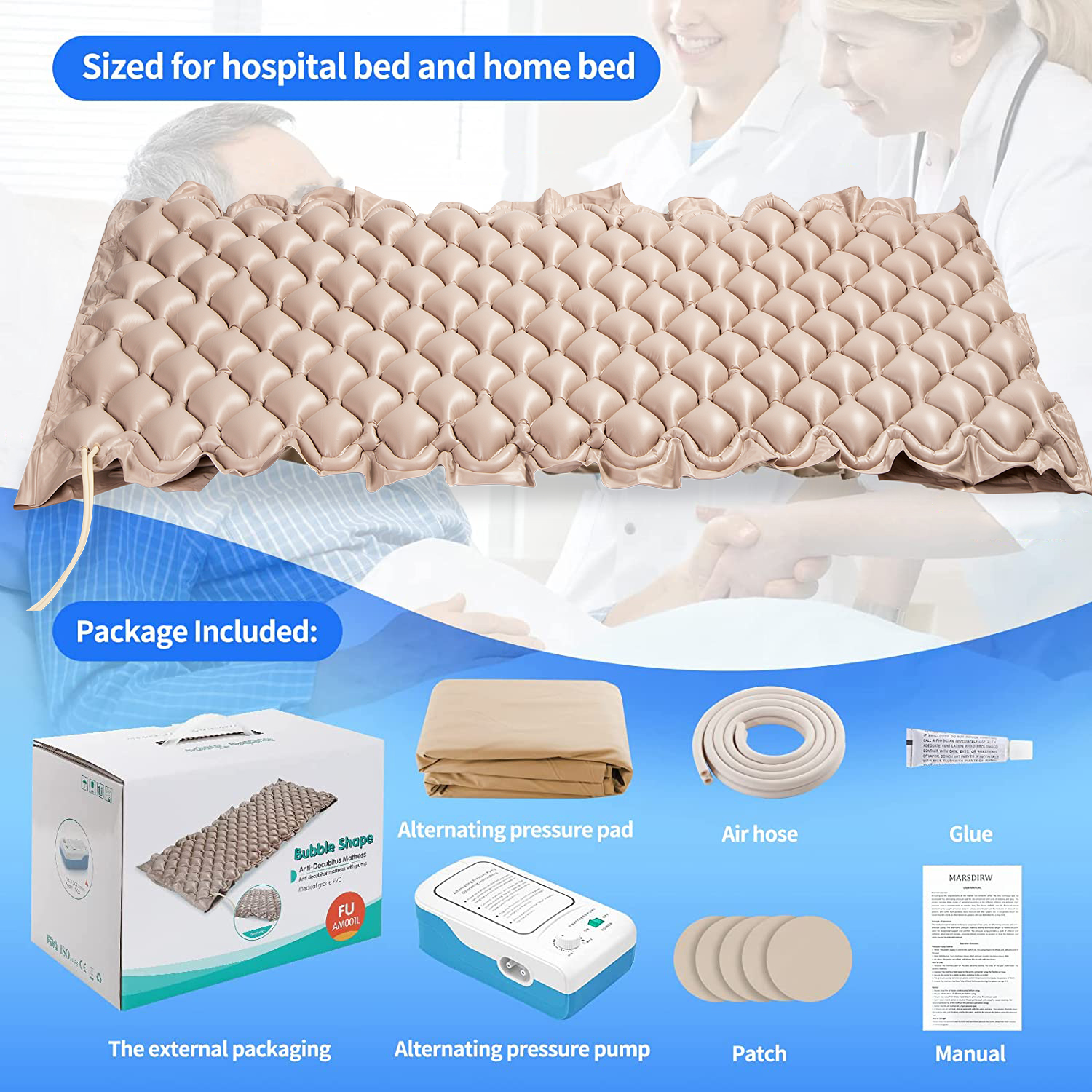

Foldable. Deflated, the mattress folds into a compact package. Total shipping weight is 3.5 kilograms in a 35.5 by 29.5 by 40 centimetre gift box. For post-surgical recovery — a six-week hip replacement rehabilitation, for instance — the system stores away completely afterward rather than permanently occupying a closet.

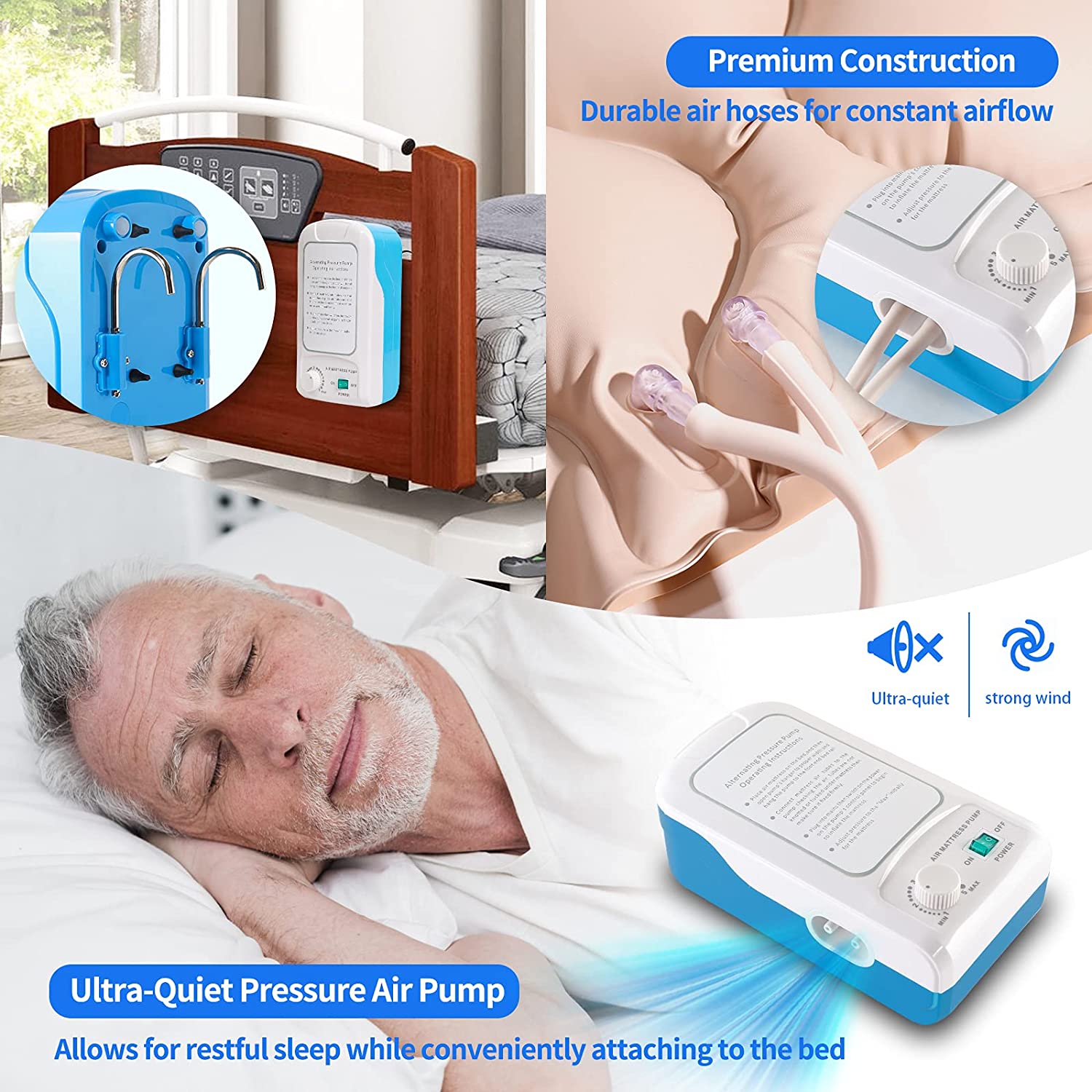

Quiet Pump, Continuous Operation

The 10-watt pump measures 24 by 13 by 9 centimetres and accepts AC 220/230V or 110V at 50/60Hz, covering global voltage standards. Fitconn specifies a low-noise design explicitly framed around "safe sleep."

That framing is correct. The pump runs continuously in the room where the patient sleeps, cycling repeatedly through the night. A loud compressor degrades sleep for both patient and caregiver, and sleep deprivation in a recovering patient measurably slows tissue healing — which directly undermines the outcome the mattress exists to protect.

At 10 watts, continuous 24-hour operation costs a negligible amount of electricity, which matters for a device designed to run for months without interruption.

Certification and Support Terms

The FU-AM001L is a Class II medical device carrying CE, MDR EU, RoHS, FCC, 93/42/EEC, and ISO 13485 certification, manufactured to GB/T 32610 safety standards.

Manufacturing Foundation

The FU-AM001L is built by Shenzhen Fitconn Technology Co., Ltd. — 21 years in home healthcare device manufacturing, a 4.9 out of 5 store rating, a 23% reorder rate, and the number one ranking among household medical device factories on its platform. Fitconn operates as a direct manufacturer with a dedicated QC department inspecting at every process stage, and welcomes third-party inspection and factory audits.

Who Should Carry This Product

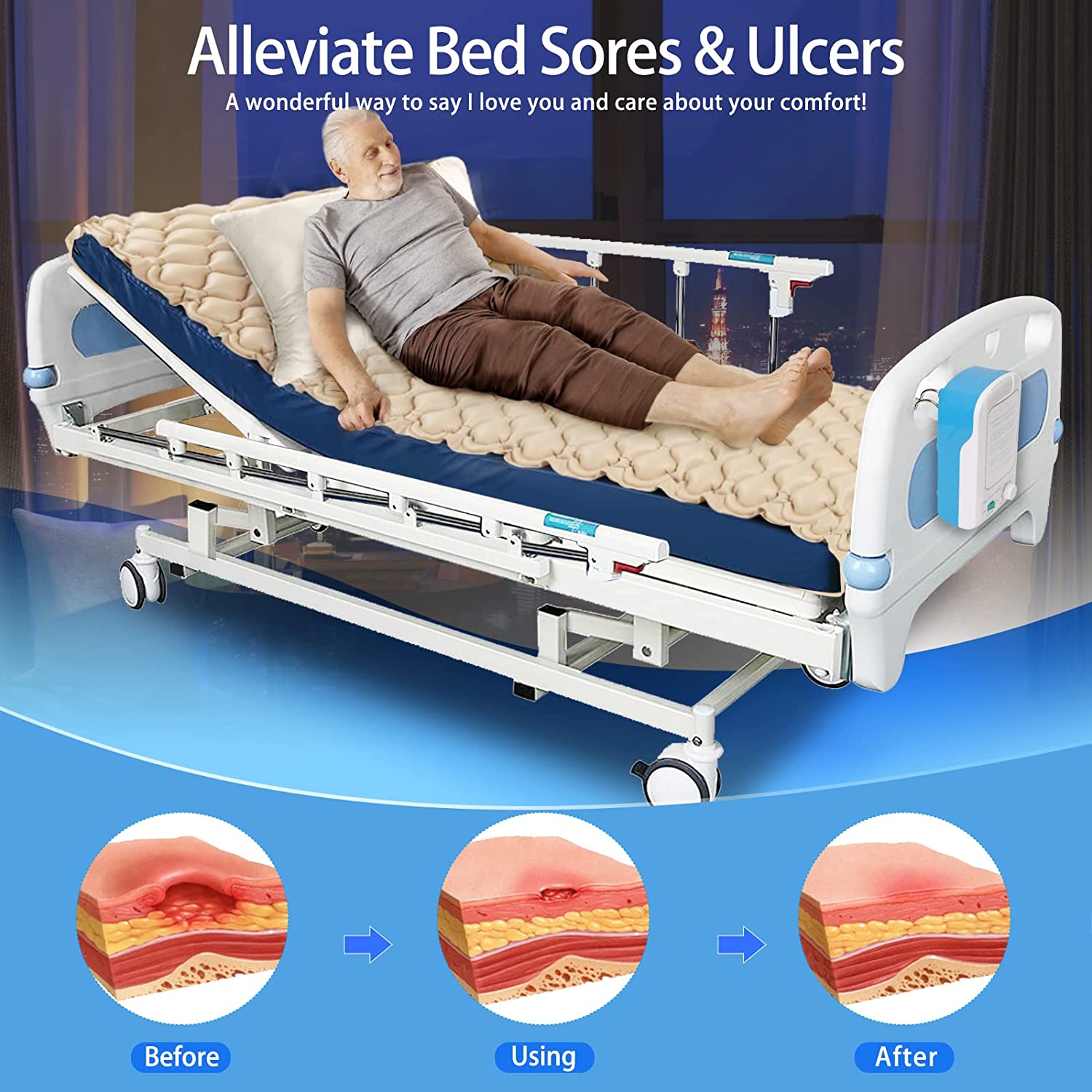

The FU-AM001L targets the home care mainstream — families managing a paralysed or mobility-limited relative, home medical equipment retailers, and distributors serving post-surgical recovery markets.

The Final Word

The double-pipe circular air path is not a feature that photographs well or fits on a spec sheet headline. It is an internal design decision that determines whether cell pressure stays uniform from head to foot across thousands of cycles. Combined with a static mode for care procedures and adjustable firmness for different body weights, the Fitconn FU-AM001L is engineered around how these mattresses are actually used — not how they demonstrate in a showroom. For a device that has to run unattended for months while protecting skin that cannot protect itself, that distinction is the entire value proposition.
